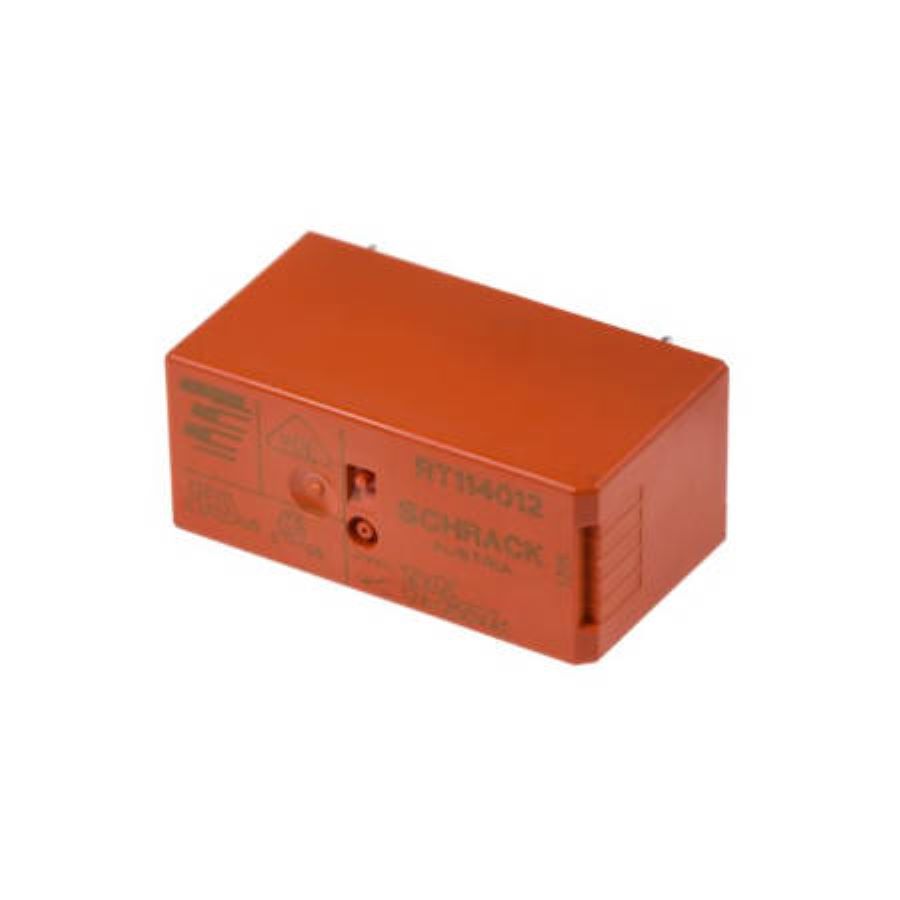

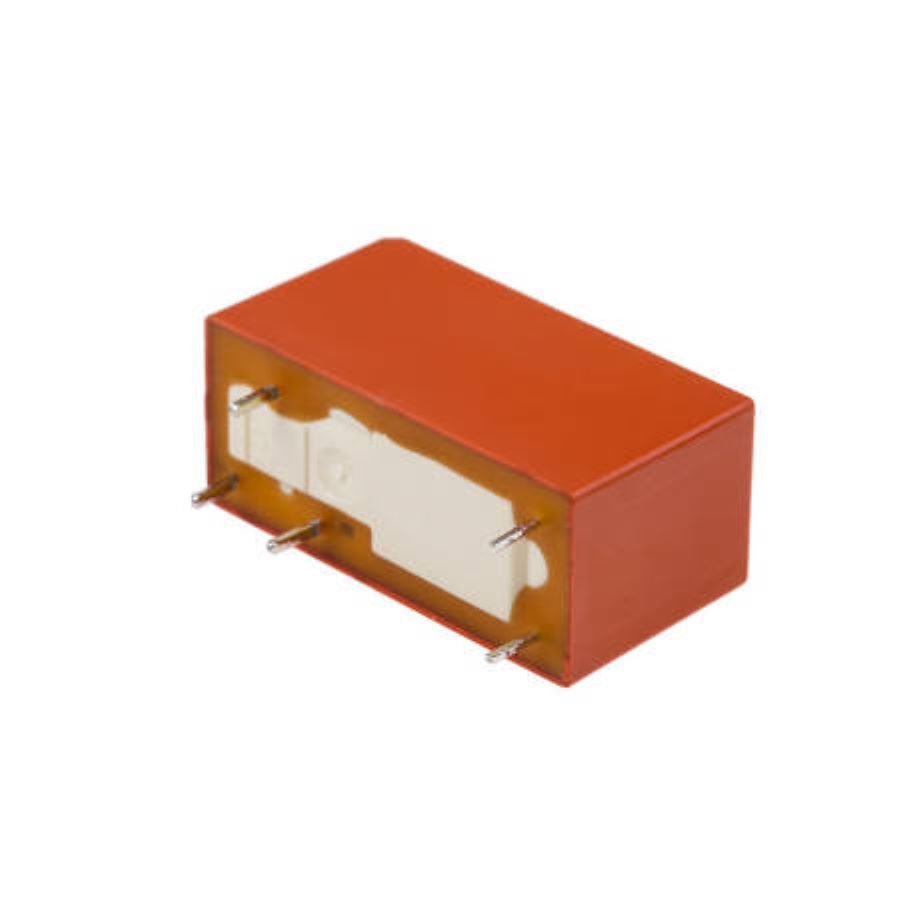

RT114012
Manufacturer:
TE Connectivity
Mfr.Part #:
RT114012
Datasheet:
Description:
Signal Relays Through Hole 33.3 mA Non-Latching Coil Voltage (DC):12 V
| Parameter | Value |
|---|---|
| Length | 29 mm |
| Width | 12.7 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 400 V |
| Number of Pins | 5 |
| Height | 15.7 mm |
| Packaging | Tube |
| Depth | 12.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Ratings | IP54 |
| Contact Material(Contact Finish) | Silver Nickel (AgNi) |
| Current Rating | 12 A |
| Max Current Rating | 12 A |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 400 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 33.3 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 360 Ω |
| Relay Type | General Purpose |
| Operate Time | 8 ms |
| Release Time | 6 ms |
| Contact Current Rating | 12 A |
| switching current | 12 A |
| power consumption | 400 mW |
| Termination Style | PC Pin |
| Switching Voltage | 400 VAC |
| Coil Power | 400 mW |
| Switching Capacity | 3 kW |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Must Operate Voltage | 8.4 V |
| Must Release Voltage | 1.2 V |
| Contact Form | SPDT (1 Form C) |
Stock: 1469
Distributors
pcbx
pcbxUnit Price$2.15870
Ext.Price$2.15870
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.15870 | $2.15870 |
| 10 | $1.98344 | $19.83440 |
| 25 | $1.93983 | $48.49575 |
| 50 | $1.72696 | $86.34800 |
| 100 | $1.69618 | $169.61800 |
| 300 | $1.67077 | $501.23100 |
| 500 | $1.64574 | $822.87000 |
| 1000 | $1.32685 | $1326.85000 |
